Overhead Clearance Structures
Carbon Steel Clearance Structure
Specifications:
- Manufactured in two pieces
- Available in silver, yellow, or black powder-coated enamel
- 9'-10" high vertical post
- 10' horizontal beam
- Optional version with a retractable horizontal beam
Includes:
- 5.0" x 80" Height Guard Clearance Bar
- Clearance Graphics Kit
- Height Guard Chains
Graphics Kit
Galvanized Double Loop Chain
Optional J-Anchor Kit
Non-reflective, self-adhesive graphics kit that includes the word “clearance” and two sets of numbers (0-9) with inch and feet marks.
Optional J-Anchor Kit
Galvanized Double Loop Chain
Optional J-Anchor Kit
This anchor assembly helps with mounting the Carbon Steel Clearance Structure. J-Anchor Kit includes:
(4) 5/8" Hex Nuts, (4) 5/8" Washers, & (4) 5/8" x 17-7/8" x 3-7/8" Galvanized Bent Anchors along with steel template.
It is recommended to use Sonotube® filled with foundation grade high strength concrete with steel rods enforcement, 30” deep or 4” deeper than local frost line.
Galvanized Double Loop Chain
Galvanized Double Loop Chain
Galvanized Double Loop Chain

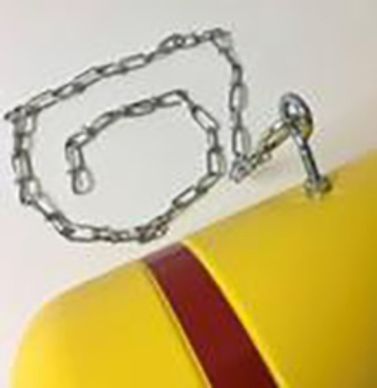

Bright Galvanized Chain for Height Guard Clearance Bar Installation
Includes:
#3 x 36" (2 units)
(2) 3/16" zinc plated snap hooks
We recommend using collapsible, absorbing, link chain and not stiff wire.
Looking for an Overhead Clearance Bar
Height Guard Clearance Bars
Go to the Height Guard Clearance Bar page.
FAQ
See the FAQ download for more information about Height Guard Overhead Clearance Bars.
